MPM

Article 3.3.Sxx.SS

3.3.Sxx.SS
male 1, 3-way
male 2, 3-way

3.3.Sxx.SS

  • Connection between transmitter and balancer (ISB),
    without GAP and without neutral position
  • Plug / Plug
  • 3-pole

Further cable lengths on request.

Catalog-# / Description

Catalog-# Order-# Description

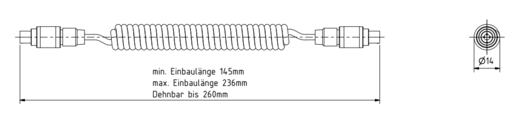

3.3.S01.SS 1014855A min. insertion length 145mm / max. insertion length 236mm, max. expandable up to 260mm

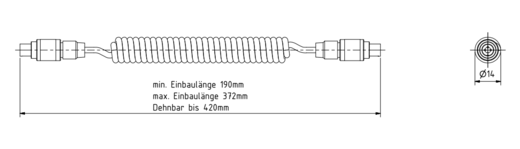

3.3.S02.SS 1014856A min. insertion length 190mm / max. insertion length 372mm, max. expandable up to 420mm
3.3.S03.SS 1014857A min. insertion length 324mm / max. insertion length 780mm, max. expandable up to 900mm
3.3.S04.SS 1014858A min. insertion length 660mm / max. insertion length 1800mm, max. expandable up to 2100mm

Dimensional drawings

AccessoryDescription Article
receivers
without AE acoustic emission
3.E.xxto product
Built-in Balancers, Type A and B
without AE acoustic emission
3.ISB.xxxA / 3.ISB.xxxBto product
