MPM

Article 3.8.Sxx.SS

3.8.Sxx.SS
male 1, 8-way
male 2, 8-way

3.8.Sxx.SS

  • Connection between transmitter and balancer (ISB),
    with GAP and neutral position
  • Plug / Plug
  • 8-pole

Further cable lengths on request.

Catalog-# / Description

Catalog-# Order-# Description
3.8.S03.SS 1056372A min. insertion length 324mm / max. insertion length 780mm, max. expandable up to 900mm
3.8.S04.SS 1015454A min. insertion length 660mm / max. insertion length 1800mm, max. expandable up to 2100mm

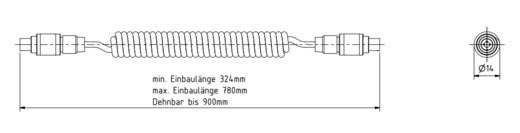

Dimensional drawings

3.8.S03.SS
3.8.S04.SS
AccessoryDescription Article
Receiver
with neutral position and AE acoustic emission 		3.E.xxGANto product
Built-in Balancers, Type A and B
with neutral position and AE acoustic emission 		3.ISB.xxxA / 3.ISB.xxxBto product
