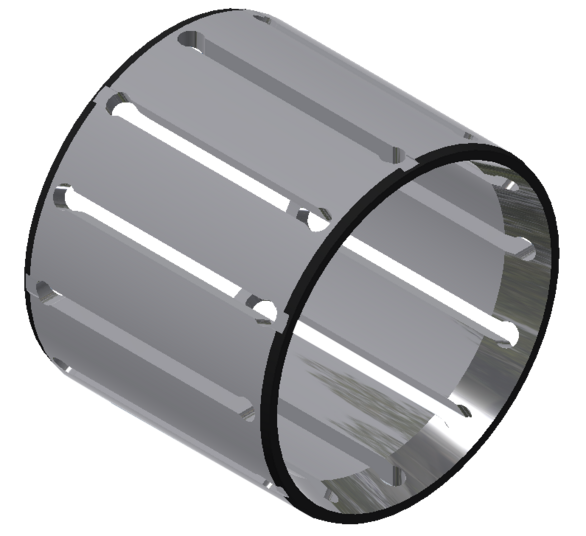

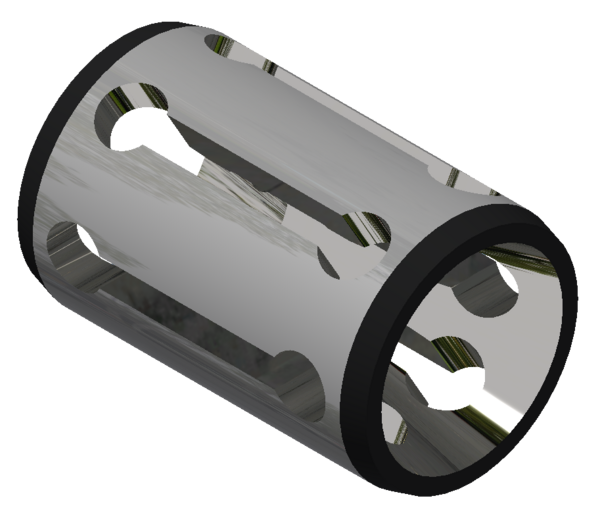

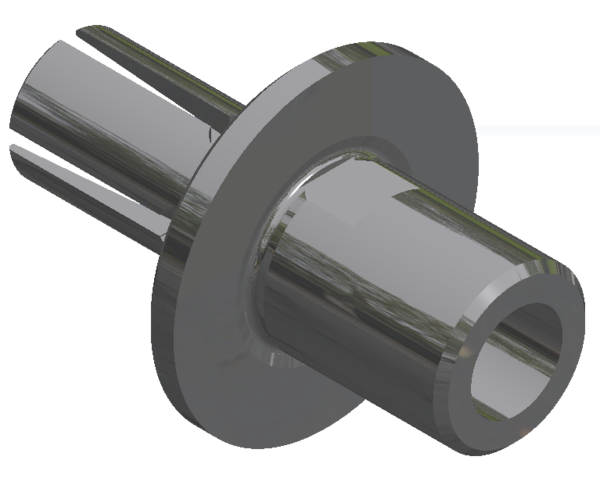

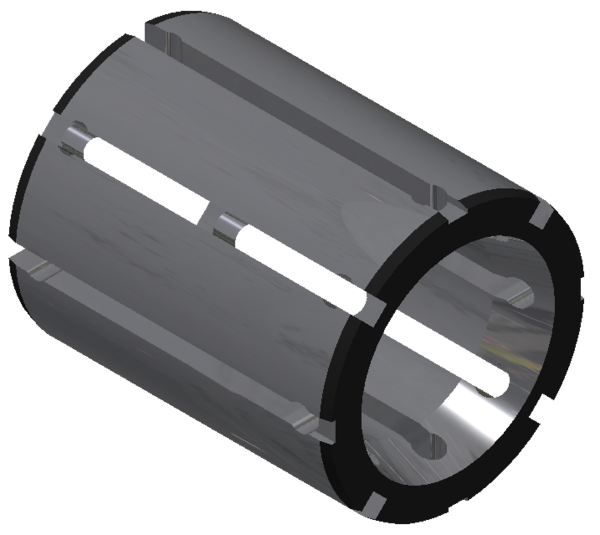

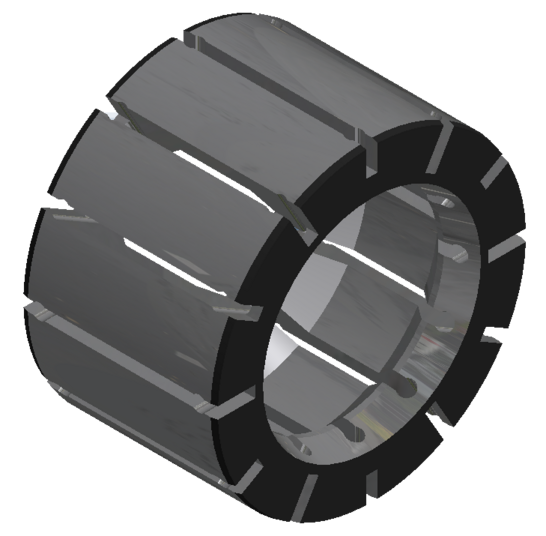

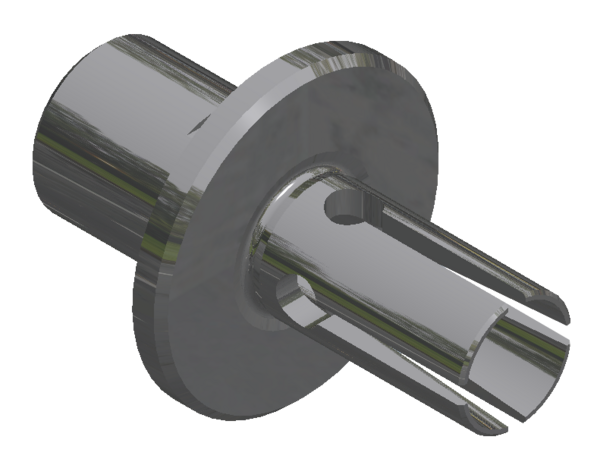

Article 3.SH
Catalog-# / Description
| Catalog-# | Order-# | Clamping Ø [mm] | Height [mm] | For clamping set SPSH.__ |
|---|---|---|---|---|
| 3.SH07 | 1017728A | 7 | 15 | 01 |
| 3.SH08 | 1017729A | 8 | 15 | 01 |
| 3.SH09 | 1017730A | 9 | 15 | 01 |
| 3.SH10 | 1017731A | 10 | 15 | 01 |
| 3.SH11 | 1017733A | 11 | 15 | 01 |
| 3.SH12 | 1017735A | 12 | 15 | 01 |
| 3.SH12,5 | 1045698A | 12,5 | 15 | 01 |
| 3.SH13 | 1017739A | 13 | 15 | 01 |
| 3.SH14 | 1017740A | 14 | 15 | 01 |
| 3.SH15 | 1017741A | 15 | 25 | 02 |
| 3.SH16 | 1017742A | 16 | 25 | 02 |
| 3.SH16,5 | 1017743A | 16,5 | 25 | 02 |
| 3.SH17 | 1017744A | 17 | 25 | 02 |
| 3.SH17,5 | 1017746A | 17,5 | 25 | 02 |
| 3.SH18 | 1017747A | 18 | 25 | 02 |
| 3.SH19 | 1017748A | 19 | 25 | 02 |
| 3.SH20 | 1017750A | 20 | 25 | 03 |
| 3.SH21 | 1017751A | 21 | 25 | 03 |
| 3.SH22 | 1017752A | 22 | 25 | 03 |
| 3.SH22,5 | 1043614A | 22,5 | 25 | 03 |
| 3.SH23 | 1017754A | 23 | 25 | 03 |
| 3.SH24 | 1017755A | 24 | 25 | 03 |
| 3.SH24,5 | 1045764A | 24,5 | 25 | 03 |
| 3.SH25 | 1017756A | 25 | 25 | 03 |
| 3.SH25,4 | 1017757A | 25,4 | 25 | 03 |
| 3.SH26 | 1017759A | 26 | 25 | 03 |
| 3.SH27 | 1017760A | 27 | 50 | 04 |
| 3.SH28 | 1017761A | 28 | 50 | 04 |
| 3.SH29 | 1017762A | 29 | 50 | 04 |
| 3.SH30 | 1017764A | 30 | 50 | 04 |
| 3.SH31 | 1017765A | 31 | 50 | 04 |
| 3.SH31,50 | 1017766A | 31,5 | 50 | 04 |
| 3.SH31,75 | 1017767A | 31,75 | 50 | 04 |
| 3.SH32 | 1017768A | 32 | 50 | 04 |
| 3.SH33 | 1056106A | 33 | 50 | 04 |
| 3.SH34 | 1017770A | 34 | 50 | 05 |
| 3.SH35 | 1017771A | 35 | 50 | 05 |
| 3.SH35,5 | 1017772A | 35,5 | 50 | 05 |
| 3.SH36 | 1017773A | 36 | 50 | 05 |
| 3.SH37 | 1048165A | 37 | 50 | 05 |
| 3.SH38 | 1017774A | 38 | 50 | 05 |
| 3.SH40 | 1017775A | 40 | 50 | 05 |
| 3.SH41 | 1017777A | 41 | 50 | 05 |
| 3.SH42 | 1017778A | 42 | 50 | 05 |
| 3.SH43 | 1056483A | 43 | 50 | 05 |
| 3.SH43,5 | 1017779A | 43,5 | 50 | 05 |
| 3.SH44 | 1035815A | 44 | 50 | 05 |
| 3.SH45 | 1017780A | 45 | 50 | 06 |
| 3.SH46 | 1017781A | 46 | 50 | 06 |
| 3.SH50 | 1017782A | 50 | 50 | 06 |
| 3.SH51 | 1017786A | 51 | 50 | 06 |
| 3.SH52 | 1017788A | 52 | 50 | 06 |
| 3.SH53 | 1035463A | 53 | 50 | 06 |
| 3.SH55 | 1017789A | 55 | 50 | 06 |
| 3.SH56 | 1017790A | 56 | 50 | 06 |
| 3.SH58 | 1053428A | 58 | 50 | 06 |
| 3.SH60 | 1017791A | 60 | 50 | 07 |
| 3.SH61 | 1017792A | 61 | 50 | 07 |
| 3.SH62 | 1017793A | 62 | 50 | 07 |
| 3.SH63 | 1017794A | 63 | 50 | 07 |
| 3.SH65 | 1017795A | 65 | 50 | 07 |
| 3.SH66 | 1017796A | 66 | 50 | 07 |
| 3.SH67 | 1017797A | 67 | 50 | 07 |
| 3.SH68 | 1033902A | 68 | 50 | 07 |
| 3.SH69 | 1033903A | 69 | 50 | 07 |
| 3.SH70 | 1017798A | 70 | 50 | 07 |
| 3.SH71 | 1017799A | 71 | 50 | 07 |
| 3.SH72 | 1017800A | 72 | 50 | 07 |
| 3.SH73 | 1033898A | 73 | 50 | 07 |
| 3.SH74 | 1033899A | 74 | 50 | 07 |
| 3.SH75 | 1017801A | 75 | 50 | 07 |
| 3.SH76 | 101802A | 76 | 50 | 07 |
| 3.SH77 | 1017804A | 77 | 50 | 07 |
| 3.SH80 | 1017805A | 80 | 50 | 07 |
| 3.SH100 | 1017732A | 100 | 50 | 09 |
| 3.SH115 | 1017734A | 115 | 50 | 09 |
| 3.SH120 | 1017737A | 120 | 50 | 09 |
| Accessory | Description | Article | |
|---|---|---|---|
 |
Clamping adapter for expansion sleeves for S40 / TS40 | 3.AD.P.SH | to product |
 |
Clamping adapter for expansion sleeves for S100 / TS100 | 3.A.SH | to product |
 | Clamping sets for expansion sleeves | 3.SPSH | to product |
 | Support plate for clamping sets | 3.ALT.43-005-324 | to product |
 | TS40-Station | 3.BMT200-TS40 | to product |
| TS100-Station | 3.BMT200-TS100 | to product |
 | Grub screw sets | 3.0.WGS | to product |
 | Precision pocket scales | 3.CM | to product |
 | Test masses for calibration | 3.TG | to product |
 | Balancing putty | 3.0.WK02 | to product |
