Speed sensor magnetic

MPM

Article 3.DS.03.3 and 3.DS.07.3

Speed sensor magnetic

For detecting spindle speeds.

With plug-compatible connection to the evaluation electronics.

Catalog-# / Description

Catalog-#	Order-#	Description
3.DS.03.3.0	1016495A	Without cable, 3-pole
3.DS.03.3	1016494A	With cable 5m, 3-pole
3.DS.07.3.0	1016517A	Without cable, 7-pole
3.DS.07.3	1016516A	With cable 5m, 7-pole

Technical details

Technical data
Switching distance Sn [mm]	4….8
Csae	M8x1, brass, nickel-plated
Length L [mm] (approx.)	49,5
Attachment	2x nut M8x1
Operating voltage	10V….24V
Exit	NPN
Connection	Built-in plug, 3-pole (3.DS.03__), for mobile devices
	Built-in plug, 7-pin (3.DS.07__), for machine-integrated devices
Reference mark	Magnet Ø6x2
	Included in delivery
	(drill hole Ø6.1 x 2.2 mm)

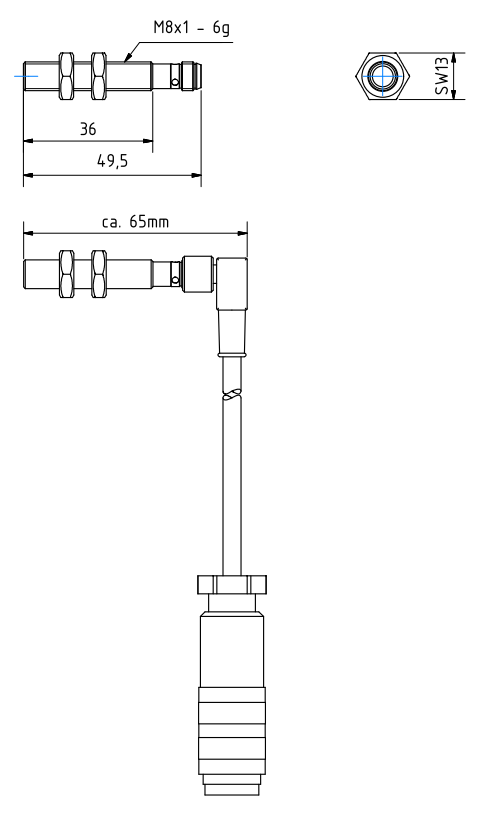

Dimensioned drawing

Application examples

Schematic diagram

All speed sensors can be mounted radially or axially.
The reflector is a magnet Ø6x2mm, which is glued into an equally dimensioned hole.

Accessory	Description	Article
	Cable, 3-pole Angled socket / plug	3.3xxWBS.DS.1	to product
	Cable, 3-pole Socket / Plug	3.3xxBS.DS.1	to product
