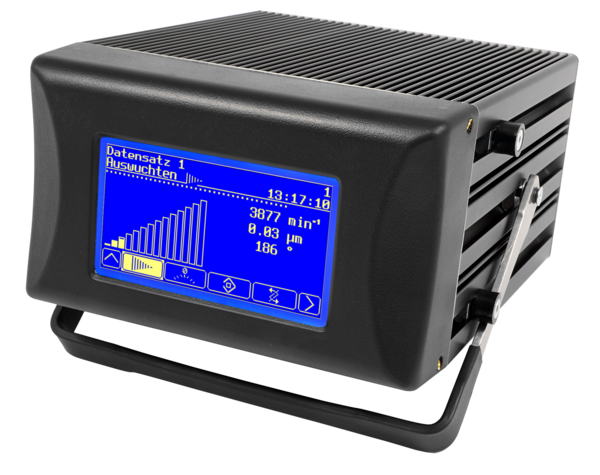

Article 3.AB300T1.C.24 and 3.AB300T1.C.230
For full automatic balancing on grinding machines with MPM external- or internal-mounted balancers with CONLESS control
- Desktop housing, aluminium
- CONLESS control
- GAP/Crash/Dress control as an option
- Simplest operation
- Touch screen
- Compatible with all CONLESS MPM balancers
- CAN-Bus data output
- Short delivery time
Catalog-# / Description
| Catalog-# | Order-# | Description |
|---|---|---|
| 3.AB300T1.C | 1053666A | Balancing electronics AB300 in table housing for CONLESS without GAP, 24V |
| 3.AB300T1.C.230 | 1053674A | Balancing electronics AB300 in table housing for CONLESS without GAP, 230V |
| 3.AB300T1.C.KM.V1A | 1057324A | Balancing electronics AB300 in table housing for CONLESS with 1-channel GAP, filter type A, 24V |
| 3.AB300T1.C.KM.V2AA | 1054217A | Balancing electronics AB300 in table housing for CONLESS with 2-channel GAP, filter type A / A, 24V |
| 3.AB300T1.C.KM.V2AA.230 | 1054559A | Balancing electronics AB300 in table housing for CONLESS with 1-channel GAP, filter type A / A, 230V |
Technical details
| Technical data | ||
|---|---|---|
| Power consumption approx. | 73 VA | |

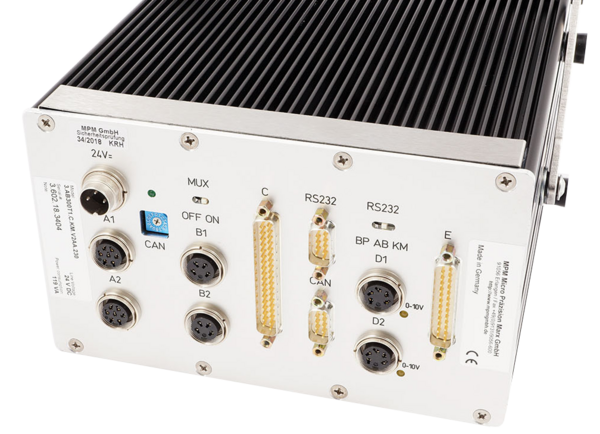

| CONLESS transmitter connection | 7-pin | |
| Vibration sensor connection | 4-pole | |
| AE-GAP/Crash/Dress connection | 5-pole | |
| Operation | Touch screen | |
| Display accuracy | ±1 digit | |

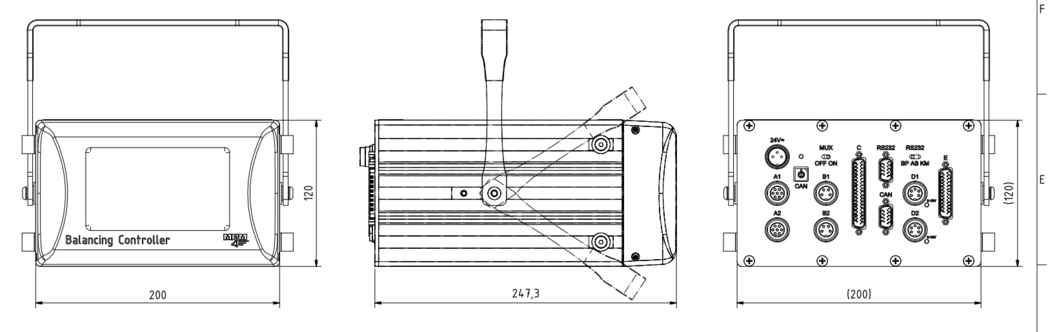

| Dimensions W x H x D | 200 x 120 x 245mm | |
| Weight approx. | 4 kg | |
| Standard housing | aluminium profile with plastic front | |
| Ambient temperature during operation | 0 °C to +50 °C | |
| Ambient temperature during storage | -10 °C to +60 °C | |
| Humidity | 20 % to 50 % rel. humidity |
| Accessory | Description | Article | |
|---|---|---|---|
 | Vibration sensor | 3.PU | to product |
 |
Cable (extension), 4-way for vibration sensor socket / connector | 3.4xxBS | to product |
 | CONLESS-Transmitter, 7-way | 3.SxxC | to product |
 |
Cable (extension), 7-way for CONLESS-Transmitter socket / connector | 3.7xxBS | to product |
 |
CONLESS-Empfänger, 3-polig ohne AE-Körperschall | 3.Exx | to product |
 |
Coiled cable, 3-way Connection between electronics and ISB type A and B For ISB-balancers without AE-GAP-signal | 3.3.Sxx.SS | to product |
 | Internal balancers | 3.ISB | to product |
 |
Internal balancers for flanges with HSK. From HSK63 to HSK125 | 3.ISBxxxC | to product |
 | External balancers | 3.ESB | to product |
